Lighthouse Foundation Design for Venetian Harbour

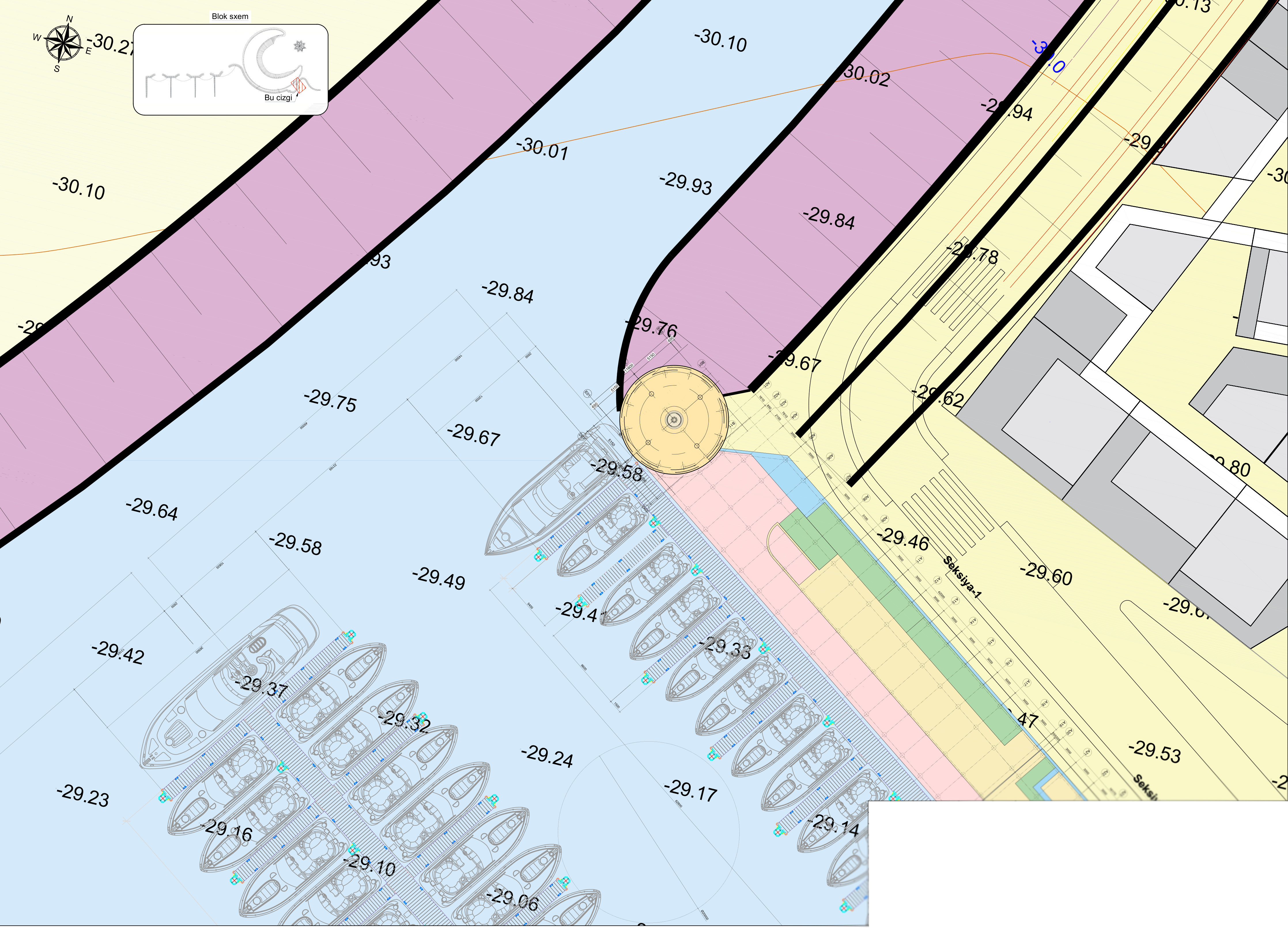

As part of the Aypara (Half Moon) island development, Hydrotrans Engineering has designed the circular lighthouse platform — a vital navigation landmark for the Sea Breeze Resort.

Engineering Solutions

The structure is divided into two primary working sections to ensure maximum stability in offshore conditions.

• Framework: A spatial steel/concrete frame utilizing complex nodal segments (Series A, B, D, E) with a structural pitch of up to 5150 mm.

• Dimensions: Support zone diameters reach 42–45 meters, with total structural lines extending up to 62.8 meters.

Hydrotechnical Conditions

The foundation is engineered to accommodate the challenging seabed bathymetry of the Caspian Sea.

• Depths: Design placement levels range from -27.07 to -30.27 CSL.

• Reliability: Precise calculation of nodal loads ensures the safe and stable operation of the lighthouse within the Venetian Harbour waters.
